Swisspearl CARAT Series

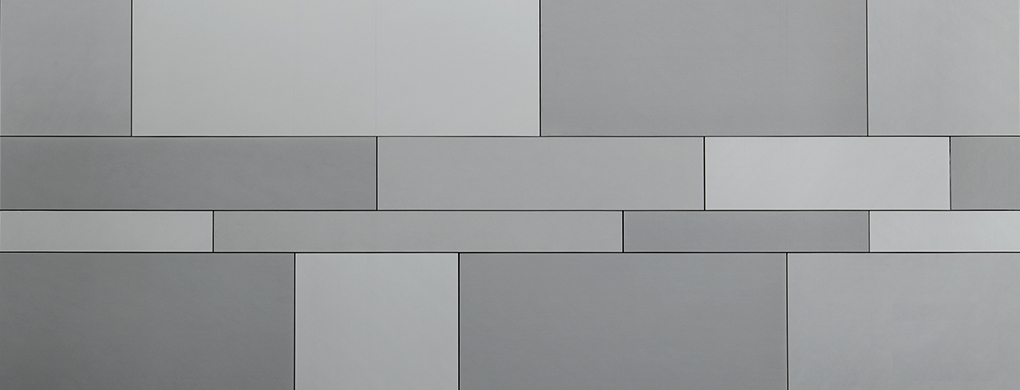

Swisspearl CARAT

Setting the signature standard of architectural fiber cement!



The Swisspearl CARAT collection offers 24 different through-color panels that feature either a translucent or pigmented top layer.  The unique, natural look and timeless beauty of the monolithic material has a delicate vein texture which provides an exciting and noble expression to buildings.

CARAT is available in a wide spectrum of complementary shapes and is the finest air-cured fiber cement façade solution to create contrasts and special effects or to blend into any setting.  The proprietary processes pioneered by Swisspearl include a special surface finish, sealed edges, and back coating ensuring optimal behavior and durability of the panels.  Thanks to the superior smooth surface, there is minimal maintenance.

CARAT panels are air-cured and not autoclaved (unlike competing panel products). Advantages of this approach include:

  • The 28-day curing process allows panels and fibers to cure naturally, without excess energy or heat applied
  • High-quality raw materials provide a better finish when air-cured over time
  • Longer lasting durability with increased 'creep' capacity - reduces tensile stresses from panel expansion/contraction
  • Natural process, no additional heat applied
  • Low moisture movement within panels, reducing internal panel stress
  • Better resistance to environmental/chemical agents based on air-cured process


CARAT is available in CARAT HR: Anti-Graffiti or CARAT F: for higher UV resistance.

Swisspearl CARAT Color Overview

Swisspearl Fiber Cement Spec

Swisspearl CARAT 2020

Product Sizes

Product Sizes

Cladding Corp Largo Size 5/16“ Thick

Largo 8mm

120 1/16“ × 49 3/16“       5/16“

98 13/16“ × 49 3/16“      5/16“

Cladding Corp Largo Panel Size 1/2“ Thick

Largo 12mm

120 1/16“ × 49 3/16“      1/2“

98 13/16“ × 49 3/16“      1/2“

Cladding Corp Largo Panel Size 120 1/16"× 36 5/8" and 98 13/16" × 36 5/8"  5/16"

Largo 8mmT

120 1/16"× 36 5/8"     5/16"

98 13/16" × 36 5/8"     5/16"

Cladding Corp Linearis 6 Thumbnail

Linearis 6

5 5/8” x 9’ 11 11/16”     5/16”

5 5/8” x 7’ 11 11/16”     5/16”

Cladding Corp Linearis 12 Thumbnail

Linearis 12

11 5/8” x 9’ 11 11/16”     5/16"

11 5/8” x 7’ 11 11/16”     5/16"

Cladding Corp Linearis 16 Thumbnail

Linearis 16

15 5/8” x 9’ 11 11/16”     5/16"

15 5/8” x 7’ 11 11/16”     5/16"

Cladding Corp Linearis 24 Thumbnail

Linearis 24

23 5/8” x 9’ 11 11/16”     5/16"

23 5/8” x 7’ 11 11/16”     5/16"

Color Palette

Swisspearl® Sandstone 7000

Sandstone 7000

Swisspearl® Sandstone 001

Sandstone 7001

Swisspearl® Sandstone 7002

Sandstone 7002

SWISSPEARL® Coral 7030

Coral 7030

Swisspearl® Coral 7031

Coral 7031

Swisspearl® Coral 7032

Coral 7032

Swisspearl® Amber 7070

Amber 7070

Swisspearl® Amber 7071

Amber 7071

Amber 7073

Amber 7073

Swisspearl® Limestone 7080

Limestone 7080

Limestone 7082

Limestone 7082

Swisspearl® Ivory 7090

Ivory 7090

Swisspearl® Ivory 7091

Ivory 7091

Swisspearl® Ivory 7099

Ivory 7099

Swisspearl® Granite 7060

Granite 7060

Swisspearl® Granite 7061

Granite 7061

Swisspearl® Crystal 7010

Crystal 7010

Swisspearl® Jade 7050

Jade 7050

Swisspearl® Azurite 7040

Azurite 7040

Swisspearl® Azurite 7041

Azurite 7041

Swisspearl ® Anthracite 7020

Anthracite 7020

Swisspearl® Anthracite 7021

Anthracite 7021

Swisspearl® Anthracite 7024

Anthracite 7024

Swisspearl® Anthracite 7025

Anthracite 7025

Project References

Eco Cladding Attachment Systems

ECO Cladding Sigma Hci.10 System for Swisspearl Fiber Cement Panels

HCI.10 SYSTEM

Panel Subframing system that offers visible rivet fixing for fiber cement, HPL or fiber concrete panels. Rivet attachment guarantees high pull-out values and ease of installation.

ECO Cladding Sigma Vci.10 System for Swisspearl Fiber Cement Panels

VCI.10 SYSTEM

Panel Subframing system that offers visible rivet fixing for fiber cement panels. Rivet attachment guarantees high pull-out values and ease of installation.

ECO Cladding Sigma Vci.40 System for Swisspearl Fiber Cement Panels

VCI.40 SYSTEM

Panel Subframing system that offers fixing using concealed, undercut anchors for fiber cement panels. The back of each panel is pre-drilled using undercut drill bit to receive the hanger clip and expanding bolt anchor.
