Swisspearl ZENOR Series

Swisspearl ZENOR

Economical and beautiful… bright, opaque colors!

Swisspearl® ZENOR is a high-quality architectural fiber cement panel with a smooth, opaque surface coating that resembles the base panel color. With a matte finish, ZENOR is available in 16 clear, strong colors.  ZENOR is composed of all-natural raw materials and serves as an eco-friendly product that meets the demands of sustainability inherent to modern rainscreen cladding design.

ZENOR panels are air-cured and not autoclaved (unlike competing panel products). Advantages of this approach include:

  • The 28-day curing process allows panels and fibers to cure naturally, without excess energy or heat applied
  • High-quality raw materials provide a better finish when air-cured over time
  • Longer lasting durability with increased 'creep' capacity - reduces tensile stresses from panel expansion/contraction
  • Natural process, no additional heat applied
  • Low moisture movement within panels, reducing internal panel stress
  • Better resistance to environmental/chemical agents based on air-cured process

Swisspearl ZENOR Color Overview

Swisspearl Fiber Cement Spec

Swisspearl ZENOR Series

Product Sizes

Product Sizes

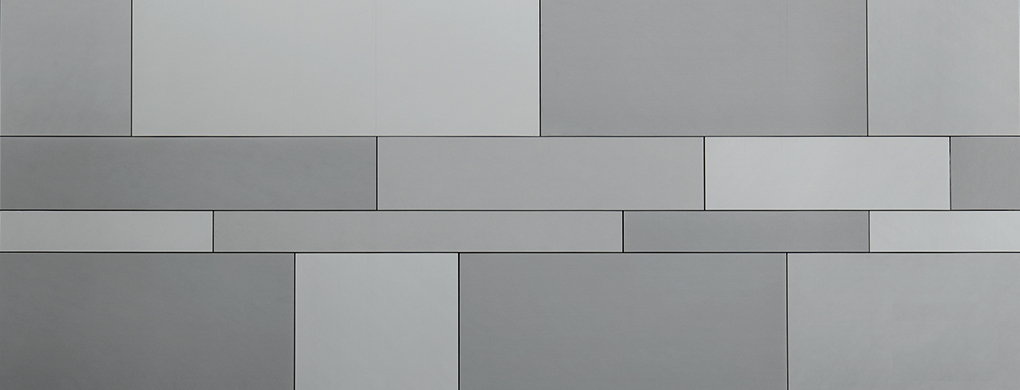

Cladding Corp Largo Size 5/16“ Thick

Largo 8mm

120 1/16“ × 49 3/16“       5/16“

98 13/16“ × 49 3/16“      5/16“

Cladding Corp Linearis 6 Thumbnail

Linearis 6

5 5/8” x 9’ 11 11/16”     5/16”

5 5/8” x 7’ 11 11/16”     5/16”

Cladding Corp Linearis 12 Thumbnail

Linearis 12

11 5/8” x 9’ 11 11/16”     5/16"

11 5/8” x 7’ 11 11/16”     5/16"

Cladding Corp Linearis 16 Thumbnail

Linearis 16

15 5/8” x 9’ 11 11/16”     5/16"

15 5/8” x 7’ 11 11/16”     5/16"

Cladding Corp Linearis 24 Thumbnail

Linearis 24

23 5/8” x 9’ 11 11/16”     5/16"

23 5/8” x 7’ 11 11/16”     5/16"

Color Palette

Swisspearl Zenor 11006

11006

Swisspearl Zenor 11115

11115

ZENOR 15015

15015

Swisspearl Zenor 23057

23057

Swisspearl Zenor 33106

33106

Swisspearl Zenor 35005

35005

Swisspearl Zenor 35154

35154

Swisspearl Zenor 41055

41055

Swisspearl Zenor 51101

51101

Swisspearl Zenor 63077

63077

Swisspearl Zenor 65061

65061

Swisspearl Zenor 65126

65126

Swisspearl Zenor 67007

67007

Swisspearl Zenor 67014

67014

Swisspearl Zenor 67159

67159

Swisspearl Zenor 69055

69055

Eco Cladding Attachment Systems

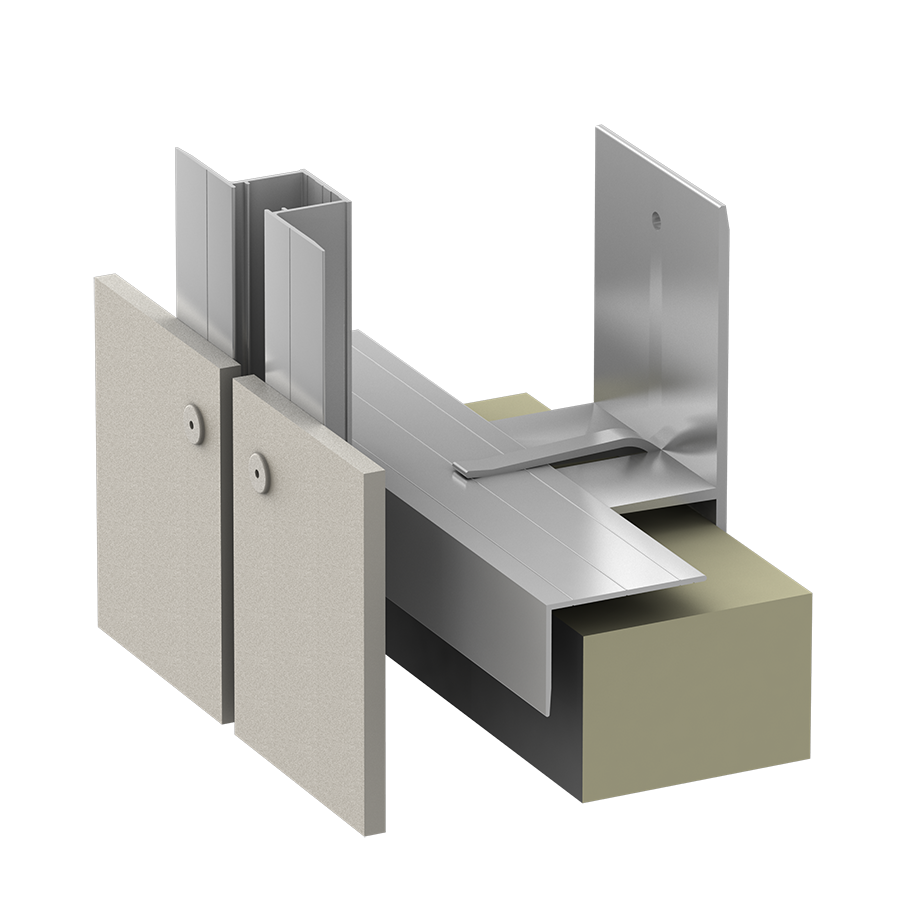

Alpha Hci.10 System

ALPHA HCI.10 SYSTEM

Panel Sub-framing system that offers visible rivet fixing for fiber cement panels. Rivet attachment guarantees high pull-out values and ease of installation. Engineered to address deadload, windload, seismic concerns, thermal requirements and material deflection for either steel stud or concrete back-up conditions.

Alpha Vci.10 Rainscreen Aluminum Sub-framing System

ALPHA VCI.10 SYSTEM

Panel Subframing system that offers visible rivet fixing for fiber cement panels. Rivet attachment guarantees high pull-out values and ease of installation. Engineered to address deadload, windload, seismic concerns, thermal requirements and material deflection for either steel stud or concrete back-up conditions.

Alpha Vci.40 Rainscreen Aluminum Sub-framing System

ALPHA VCI.40 SYSTEM

Panel Subframing system that offers fixing using concealed, undercut anchors for fiber cement panels. The back of each panel is pre-drilled using undercut drill bit to receive the hanger clip and expanding bolt anchor.
